    Self Suction Water Sprinkler Truck Carbon Steel Stainless Steel Tank Material

    Ask Lasest Price
    Brand Name : JYS
    Model Number : CLW5080GSSB5
    Certification : ISO9001
    Price : Negotation ,CNY, USD
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 5000 Units
    Delivery Time : 55 working days
    • Product Details
    • Company Profile

    Self Suction Water Sprinkler Truck Carbon Steel Stainless Steel Tank Material

    Self Suction Water Sprinkler Truck Carbon Steel Stainless Steel Tank Material

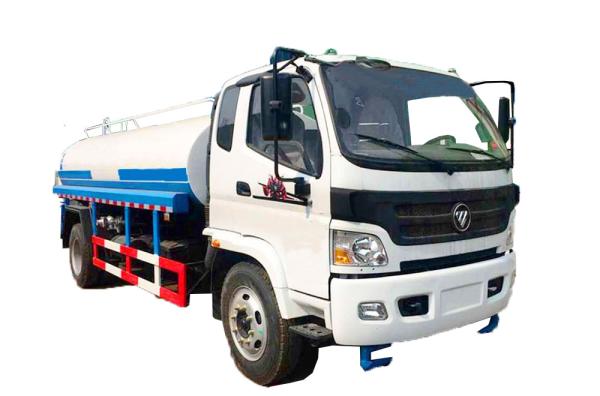

    Water tank vehicle CLW5080GSSB5 Fixed Foton tip over cabin with air conditioner, 4x4,Cummins engine. Tier IV and 6 shifts gear box, high pull force, Max 44.1KN, with ABS system.


    Water tank volume is 4-11 cub meters self suction water pump including hoses and spraying system. Popularly used in landscape engineering, water supplying, construction sites or fire protection engineering.

    Standard with Spraying left or right side, and sprinkler system in the back, the high pressure water monitor on the platform with 360 rotation.


    【Truck Main Specification】
    Name Of TruckWater Tank TruckModelCLW5080GSSB5
    Operating Weight(Kg)8280Capacity of tank(m3)4-11
    Rated Load weight(Kg)4110Overall Measurement (mm)6305,6770×2120×2350
    Net Weight(Kg)3975Front Overhang/Rear Overhang (mm)1095/1420,1120/1805,1120/1855
    Number of person in Cabin3Max. Travel speed (Km/h)95
    Approaching angle /Departure angle(°)21/17,22/14
    Loading capacity of axles(Kg)


    3000/5280


    RemarksCapacity of tank:4-11 Cu.meters,Loading:Water,Density:1000Kg/m3,Measurement of tank (Length×Long axle× Short axle) 6770/1120/20/3800/(4000×1600×1000),6305/1095/21/3360/(3500×1700×1060
    【Specification Of Chassis】
    ModelBJ5089XXY-FANameFOTON Loading water truck
    BrandFOTONNumber of Tyre6
    Number of Axle2
    Wheel base (mm)3360,3800,4200
    Model of Tyre7.50-16 7.50R16 8.25-16,8.25R16 14PR
    Number of Plate springFront Tread(mm)1730,1685,1665,1710
    FuelDieselRear Tread(mm)1590,1615,1630
    Standard of DisplacementGB17691-2005 III ,GB3847-2005
    Engine ModelManufacturerDisplacement (ml)Rated Power(Kw)
    ISF3.8s5141Cummins engine company Limited3760105
