    T630 / T635 Rock Drilling Machine , Hydraulic Crawler Drilling Machine

    Ask Lasest Price
    Brand Name : JYS
    Model Number : T630 / T635
    Price : By email, CNY, USD, EURO
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 50 working days
    Certification : ISO9001, ISO14001
    • Product Details
    • Company Profile

    T630 / T635 Rock Drilling Machine , Hydraulic Crawler Drilling Machine

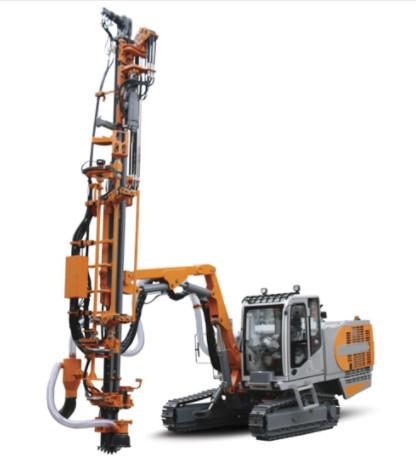

    T630 / T635 Rock Drilling Machine , Hydraulic Crawler Drilling Machine


    Advanced design conception and come out with great performance over cost value !!


    1. Fixed International famous Cummins Engine.

    2. Automatic Lubrication system to save the time and avoid the hard work of the mechanics. It also to extend the life time the machine.

    3. Dust collector, with Two- stage dry type more powerful .

    4. Feeding system, Fixed with Hydraulic braking motor, Chains , Sprocket with wheels and hoses to realizy fast and slow feeding and lifting .

    5. Heavy duty chassis and oscillation oil cylinder then powerful off-road performance


    (Hole Depth 1 rod 13.5M)


    T630/T635 Full Hydraulic Top Hammer Surface Drill Rig (ZY102)
    Engine
    Engine Model4BTA3.9-C125-II (Tier II)
    Rated Power93KW
    Rated Rotation Speed2200 Rpm
    Main specification
    Working Pressure24BarTrack Osillation±10°
    Displacement22M3/minDTH Hammer4'
    Hole Diameter Rangeφ42-89 mmRotary Torque860 N.M
    Number of Rod3+1 (Manual)Rod Length3000mm
    Hole Depth13.5mFeed TypeCylinder/ Chain
    Length of Feed Beam(Total)7200mmFeed Traveling Length3660mm
    Feed Extention1200mmMax. Feed Speed0.75m/s
    Feed Force16KNMax. Pulling Force40KN
    Traving Speed4.5Km/h (high)Driving Force(Max)69KN
    2.3km/h (low)
    Gradeability25°
    Capacity of FuelTank280LMeasure Size(LXWXH)11300X2430X2900 mm
    Ground Clearance of Chassis340mmmWeight (Options Excluded)10500Kg
