Brand Name : | JYS |
Model Number : | HG300M-10,HG400M-13,HG400M-13,HG400M-13 |
Price : | By email , CNY, USD |
Supply Ability : | 800 Units per month |
Delivery Time : | 25 working days. |
Payment Terms : | T/T, L/C, Western Union |
Certification : | ISO9001 ISO14001 |

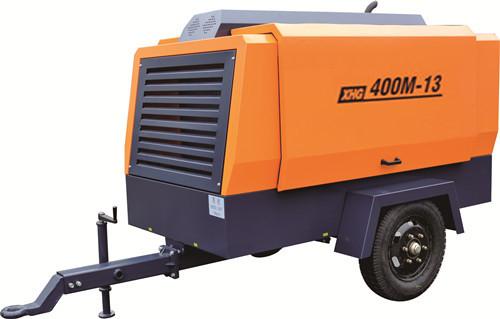

Rotary Screw Industrial Air Compressor Mid Type Engine 2 Wheels Moving
Main Specification
Model | HG300M-10 | HG400M-13 | HG425M-10 | HG450L-8 | |
Working pressure | Mpa | 1.0 | 1.3 | 10 | 0.8 |
Air displacement | m³/min | 8.5 | 10 | 11 | 13 |
Drive Method | Straight connecting, Diesel Engine Drive | Straight connecting, Diesel Engine Drive | Straight connecting, Diesel Engine Drive | Straight connecting, Diesel Engine Drive | |
Volume of Tank | L | 100 | 100 | 100 | 100 |
Diesel Engine | |||||
Manufacturer | YUCHAI YC4B115Z | Dongfeng Cummins 6BTA5.9-C150 | Dongfeng Cummins 6BTA5.9-C150 | Dongfeng Cummins 6BTA5.9-C150 | |
No.of Cylinder | mm | 4 | 6 | 6 | 6 |
Rated power | KW | 84 | 110 | 110 | 110 |
Rated speed | rpm | 2400 | 2400 | 2400 | 2400 |
Unit Dimension | mm | 2880×1740×1760 | 3220X1850X1850 | 3220X1850X1850 | 3220X1850X1850 |
Unit N.W. | Kgs | 1950 | 2450 | 2450 | 2450 |
Moving type | 2 wheels | 2 wheels | 2 wheels | 2 wheels |
![]() |
