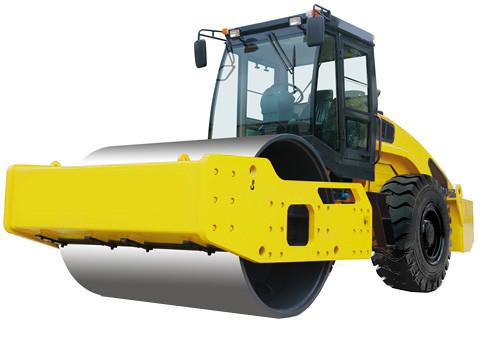

Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons

Changzhou Joyous Machineries & Equipment Company Limited
Contact Now
    Buy cheap Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons from wholesalers

    Buy cheap Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons from wholesalers
    • Buy cheap Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons from wholesalers
    • Buy cheap Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons from wholesalers

    Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons

    Ask Lasest Price
    Brand Name : JYS
    Model Number : JV612H,JV614H,JV620H,JV622H
    Certification : ISO9001
    Price : Negotation, CNY, USD
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 3000 Units
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons

    Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons


    Main features:
    1. Hydraulic front and rear drum drive, multiple infinitely variable speeds, strong grade-ability.
    2. Hydraulic vibration, start-vibration by electronic control, great exciting force with high compacting efficiency.
    3. Hydraulic steering, articulated frame with flexible steering and operation.
    4. Hydraulic service brake, electronic controlled parking brake, with brake release device which can be applied for dragging the machine for short distance.
    5. Rear engine cover can be turned up for big angle for convenient maintenance.
    6. Drive and vibration system are equipped with imported famous brand hydraulic components with reliable performance.
    7. Tires with different tread patterns are optional.
    8. Other brand engines are optional. air conditioner is for your choice.
    9. Standard equipped with cabin.


    Technical Specification:

    Product ModelJV612HJV614HJV620HJV622H
    Operating weight (kg)12000140002000022000
    Rolling width (mm)2130213021302130
    Vibration frequency (Hz)28/3228/3228/3228/32
    Theoretical amplitude of vibration (mm)1.9/0.91.9/0.91.9/0.91.9/0.9
    Exciting force (kN)280/180310/200385/260395/275
    Travel speed (km/h)0~5.5 ,0~100~5.5 ,0~100~4.25 ,0~5.5
    0~6.5 ,0~11.5
    0~4.25 ,0~5.5
    0~6.5 ,0~11.5
    Engine modelQSB3.9-C130-30QSB5.9-C150-30WP6G190E330WP6G190E330
    Engine power/speed (kW/rpm)97@/2300113@/2000140@/2200140@/2200
    Overall dimensions (mm)
    (L*W*H)
    6140×2300×30506140×2300×30506240×2320×30506240×2320×3050
